VS1 (ZN63) 12kV Indoor Air Insulated VCB Vacuum Interrupter

Name: VS1 (ZN63) 12kV Indoor Air Insulated VCB Vacuum Interrupter
Brand: Kaisaier
Rating: 5.0 (84 reviews)

Model:
TD-12/1600-31.5C
Brand:
Kaisaier
Code:
1015

Availability:

Quantity:



Inquire Add to Basket

Product Description

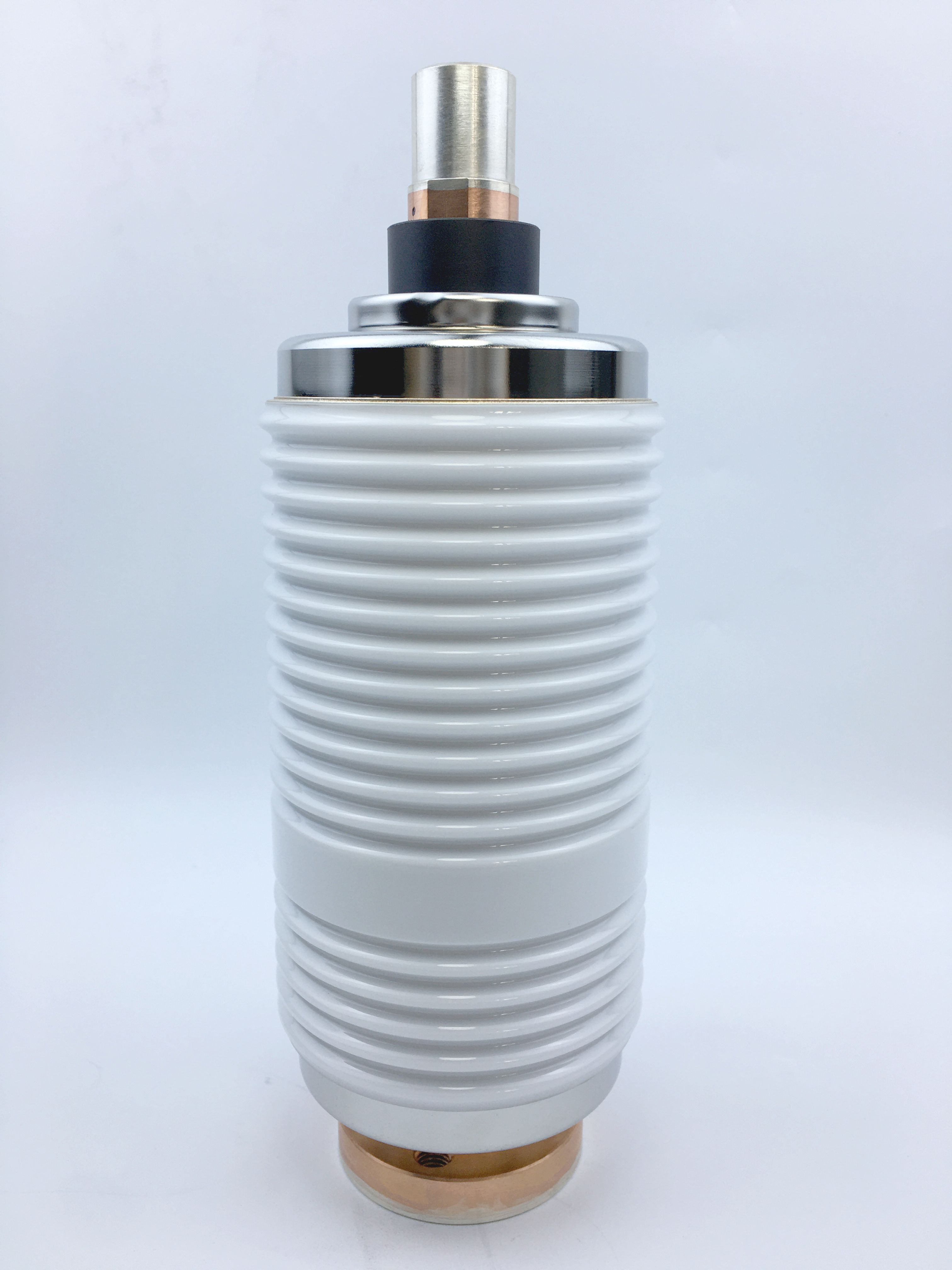

With its exceptional breaking capacity of 31.5kA, this product ensures quick and safe interruption of short-circuit currents.

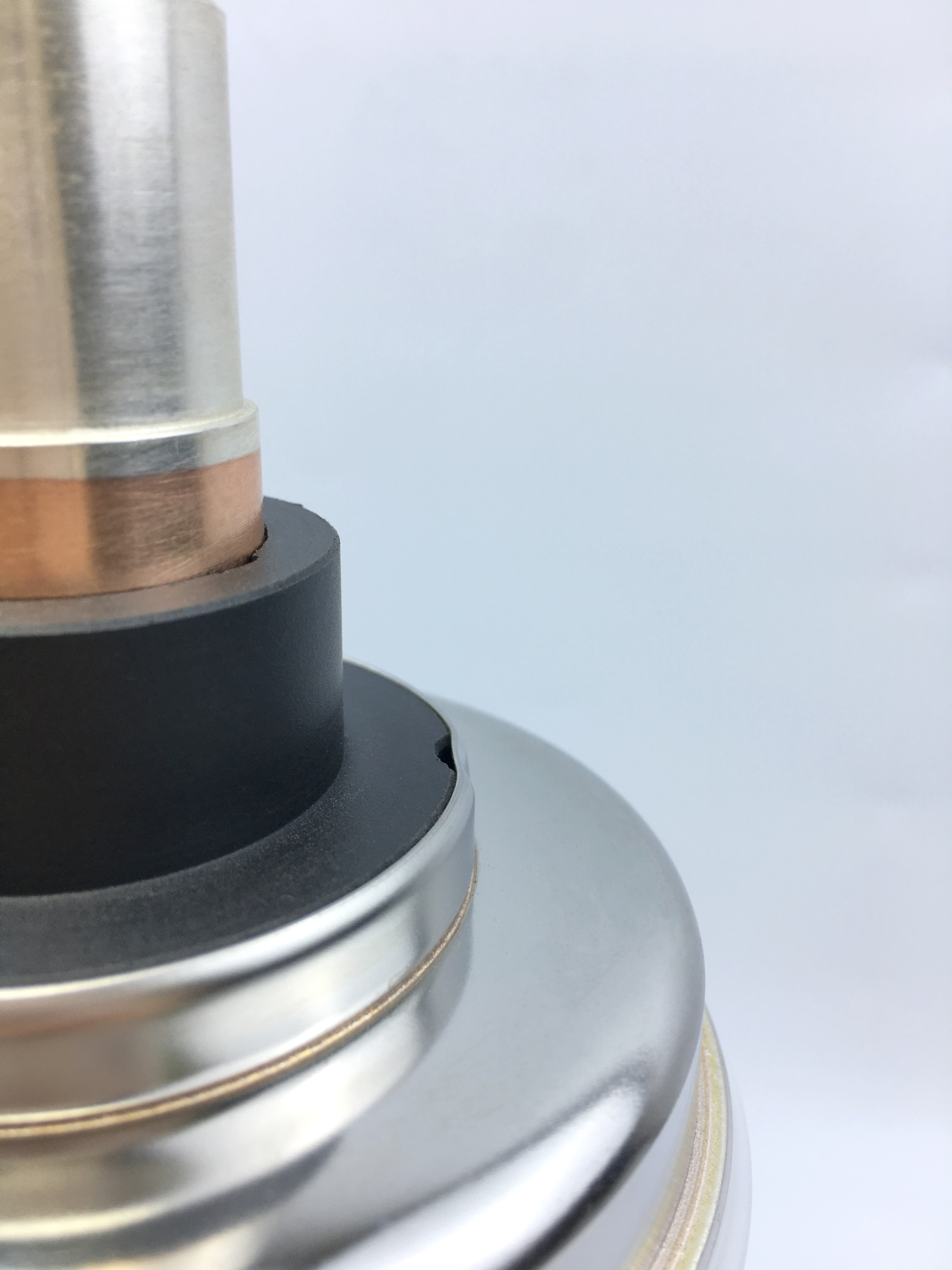

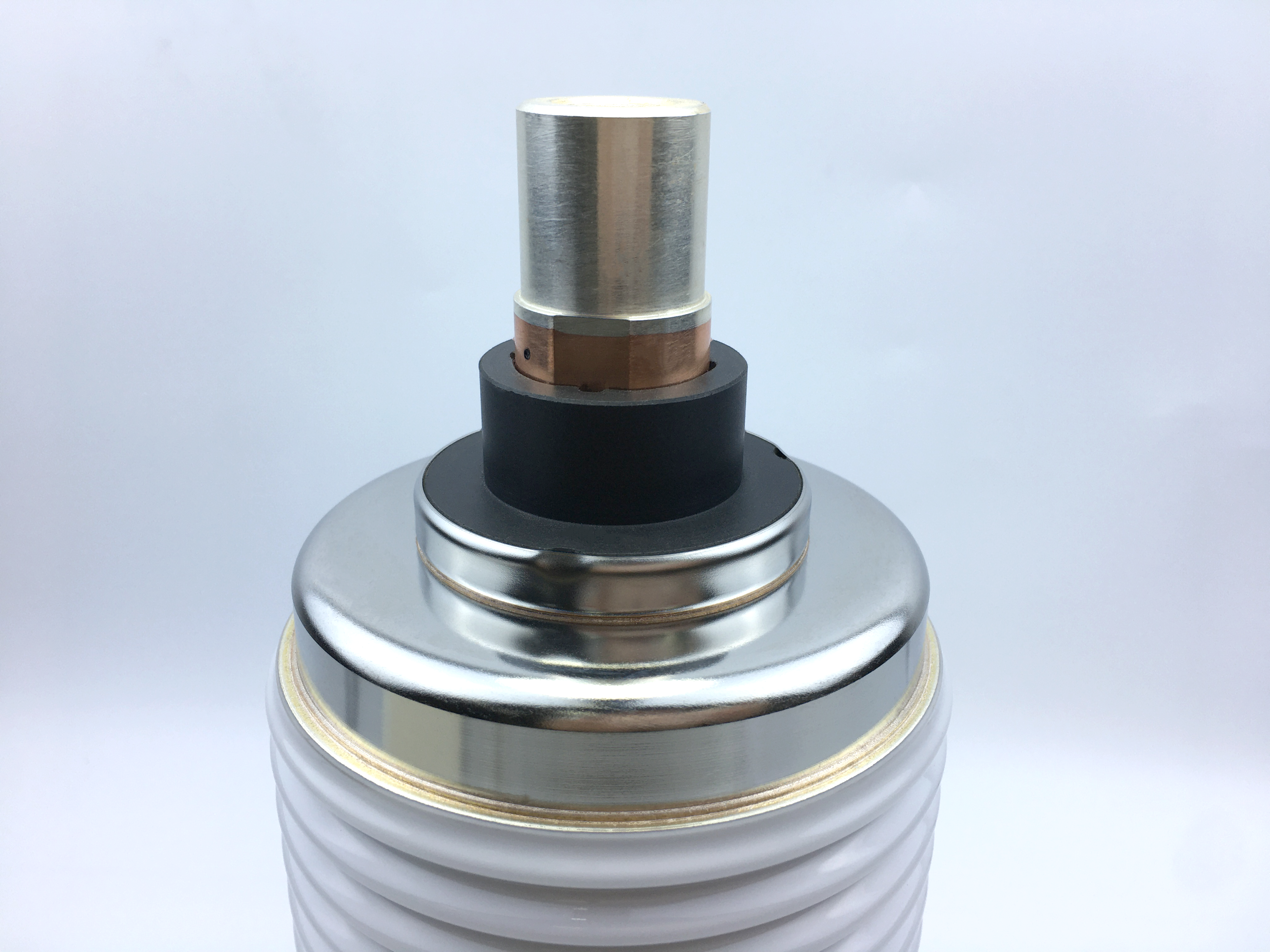

Featuring a ceramic corrugated casing, TD-12/1250-31.5C is specifically designed for seamless integration with the VS1 application. The robust ceramic shell not only provides durability but also offers high insulation performance, ensuring optimal protection for internal contacts.

Capable of handling a maximum current rating of 1600A, this product is built to withstand normal operational demands. With a lifespan of up to 10,000 operations, TD-12/1250-31.5C boasts low maintenance costs, making it a cost-effective choice for your electrical infrastructure.

Ensuring environmental friendliness, this product employs true arc extinguishing technology, leaving no impact on the surrounding environment. Its compact design accommodates the size requirements of VS1 and other compatible equipment, making installation hassle-free.

Key features:

Size: Φ98 mm*275 mm

Rated Frequency: 50 Hz

Rated Voltage: 12 kV

Rated Current: 1600A/1250 A/630A

Rated Short-circuit Breaking Current: 31.5 kA

Lighting Impulse Withstand Voltage (Peak): 85 kV

1015-3 1015-4 1015-2 1015-6

Copper Mv Switchgear Component high insulation Mv Switchgear Component breaker Copper Mv Switchgear Component breaker Mv Switchgear Component Copper high insulation Mv Switchgear Component breaker high insulation Mv Switchgear Component
